BAZZIGAR
E - Loader

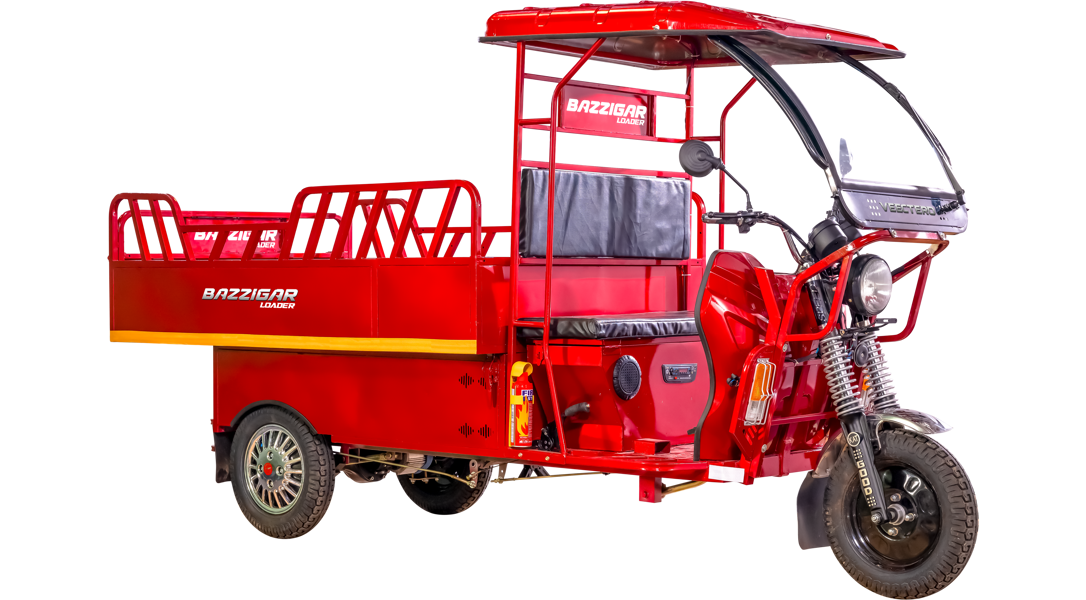

BAZZIGAR E - LOADER
VEECTERO’S SMARTER RANGE
OF ELECTRIC LOADER
Bazzigar E – Loader is a Smarter New range of Electric Loader. Bazzigar E – Loader offers Higher Loading Capacity with Low Maintenance, resulting in Higher Income for the New Age India. Empowering India with Veectero Bazzigar E – Loader !
Veectero Offers More Than You Demand !!
Higher Loading Capacity
Higher Ground Clearance
LESS maintenance
Empowering New Age Indian
FEATURES
- Wide Wheel Base offering High loading Capacity
- Increased Rear Shocker Performance
- Powerful Pickup and performance
- Long Wheel Base
- Increased suspension Performance
- Less Maintenance hence Higher Savings
- Dependable Steering and Handling
- Ample Space for Driver Cabin
SPECIFICATIONS
| PARTICULARS | Bazzigar E - Loader (Auto) | Bazzigar E - Loader (Manual) |
|---|---|---|
| Vehicle Category | Electric Vehicle | Electric Vehicle |
| Seating Capacity | 1 | 1 |
| Vehicle Roof Type | MS Roof | MS Roof |
| Length | 2675 mm | 2675 mm |
| Width | 959 mm | 959 mm |
| Height | 1582 mm | 1582 mm |
| Ground Clearance | IS-9435 Standard | IS-9435 Standard |
| Wheel Base | 2110 mm | 2110 mm |
| Front Suspension | 43 mm Dia and Total Length-31 Inch, Telescopic Suspension (CY make) | 43 mm Dia and Total Length-31 Inch, Telescopic Suspension (CY make) |
| GVW (Gross Vehicle weight) | 749 kg | 749 kg |
| FAW (Front Axle Weight) | 208 kg | 208 kg |
| RAW (Rear Axle Weight) | 541 kg | 541 kg |
| Chassis Structure | MS Welded Tube(Cold Rolled) | MS Welded Tube(Cold Rolled) |
| Body Structure | 0.8 mm/2.5 mm/1.5mm, make – Jindal Steel CR | 0.8 mm/2.5 mm/1.5mm, make – Jindal Steel CR |
| Paint | Glossy, Make – Rapid/Haryana coating/Tuff Coat | Glossy, Make – Rapid/Haryana coating/Tuff Coat |
| Body type | MS Body | MS Body |
| Top speed | 23 Kmph | 23 Kmph |
| Battery | VRLA 108 Ah | VRLA 108 Ah |
| Rear | Leaf spring with U bolt and plate | Leaf spring with U bolt and plate |
| Brake | Front Brake Drum (130mm Dia) Rear Brake Drum(160 mm Dia) | Front Brake Drum (130mm Dia) Rear Brake Drum(160 mm Dia) |
| Colour | lossy Red,White,Green,Blue,Black,Copper Brown | lossy Red,White,Green,Blue,Black,Copper Brown |
| Tyre | 90/90-12, 54J | 90/90-12, 54J |
| Rim | 2.5J*12 ” SSWPL | 2.5J*12 ” SSWPL |
| Motor Power | 900 watt, make – CY | 900 watt, make – CY |
| Controller | Controller 48 V, 50.2+-1 Ah | Controller 48 V, 50.2+-1 Ah |
| Differential | 33 inch, Make-Cy | 33 inch, Make-Cy |
| Luggage box dimension | 1465*960*320 mm | 1465*960*320 mm |
